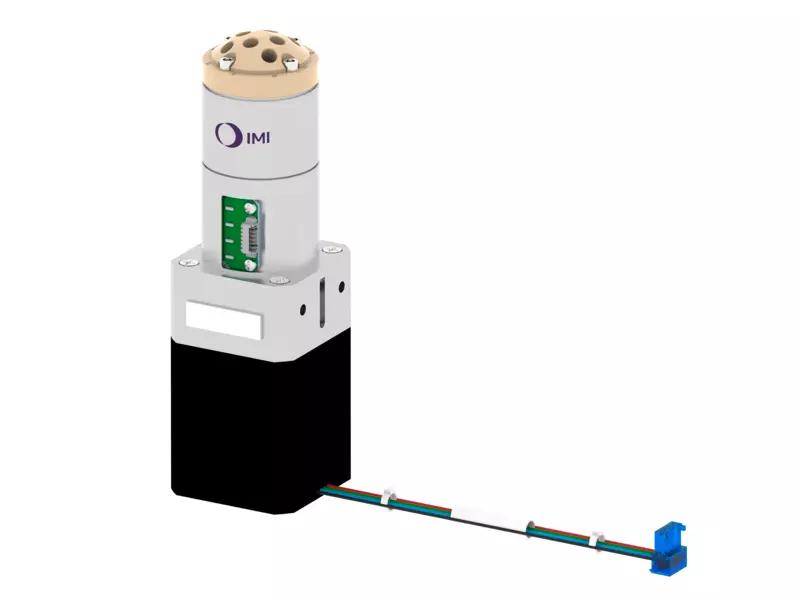

• Type:
    8 port, 2 position switching valve
  • Pressure rating:
    34 bar (500 psi)
  • Port threads:
    10-32 UNF-2B
  • Fitting type:
    Cone
  • Power requirements:
    1.26A 24V
  • Gearbox ratio:
    3.66:1
  • Motor specification:
    2 phase, 1.8° step angle
  • Connector:
    Molex 0151340606
  • Communication Protocol:
    RS-485
  • Dimensions:
    Height: 141.7 mm (5.58 in)
    Width: 42.1 mm (1.66 in)
    Depth: 42.1 mm (1.66 in)
  • Flow passage diameters:
    0.3 mm (0.01 in)
  • Port to port volume:
    0.7 μL
  • Stator port volume:
    0.1 μL
  • Seal volume:
    0.2 μL
  • Rotor channel volume:
    0.1 μL
  • Weight:
    0.35 kg (0.78 lbs)
  • Operating temperature:
    +4 … +80°C (+39 … +176°F)
  • Storage temperature:
    –30 … +80°C (–86 … +176°F)
  • Storage humidity:
    < 95% humidity, non-condensing
  • Switching time:
    < 0,25s
  • Wetted materials:
    Stator: PEEK
    Rotor: PEEK
    Seal: PEEK
  • Compliance:
    RoHS, REACH
