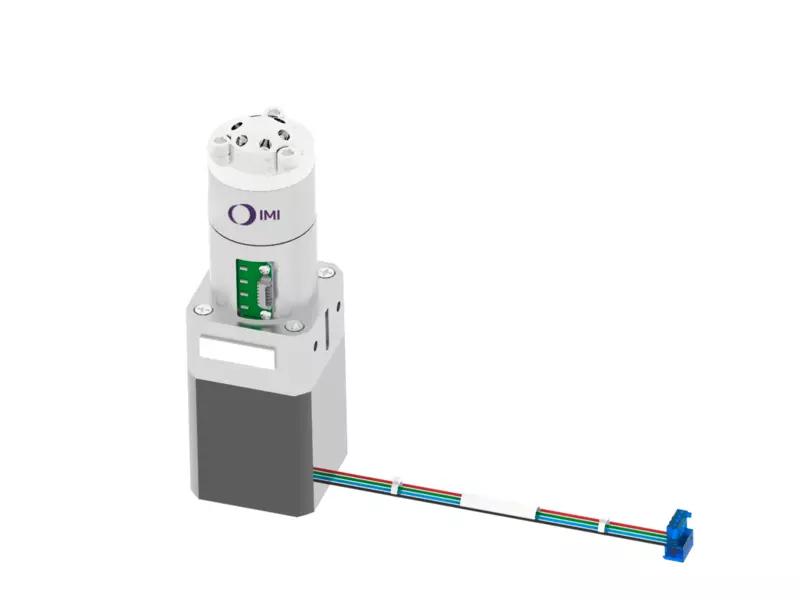

Rotary shear valve, 6 port, 2 position
VD06021SDNAPB0700-1
– Rated to 483 bar (7,000 psi)
– Dynamically alternating between two fluid paths without manually disconnecting plumbing
– High-precision position sensing by absolute encoder
– Stepper motor with a planetary gearing system
– Saving space and reducing complexity
– High-performance and cost-effective
– Proven and robust design
Technical Information
- Type:
6 port, 2 position switching valve - Pressure rating:
483 bar (7,000 psi) - Port threads:
10-32 UNF-2B - Fitting type:
Cone - Power requirements:
1.26A 24V - Gear box ratio:
5:1 - Motor specification:
2 phase, 1.8° step angle - Connector:
Molex 0151340606 - Communication Protocol:
RS-485 - Dimensions:
Height: 137.5 mm (5.41 in)
Width: 42.1 mm (1.66 in)
Depth: 42.1 mm (1.66 in) - Flow passage diameters:
0.3 mm (0.01 in) - Port to port volume:
0.32 μL (w/o grv),
0.34 μL (w/ grv) - Stator port volume:
0.085 μL (w/o grv),
0.104 μL (w/ grv) - Rotor channel volume:
0.2 μL - Weight:
0.38 kg (0.84 lbs) - Operating temperature:
+4 … +80°C (+39 … +176°F) - Storage temperature:
–30 … +80°C (–86 … +176°F) - Storage humidity:
< 95% humidity, non-condensing - Switching time:
< 0,25s - Wetted materials:
Stator: Stainless steel
Rotor: PEEK - Compliance:
RoHS, REACH
