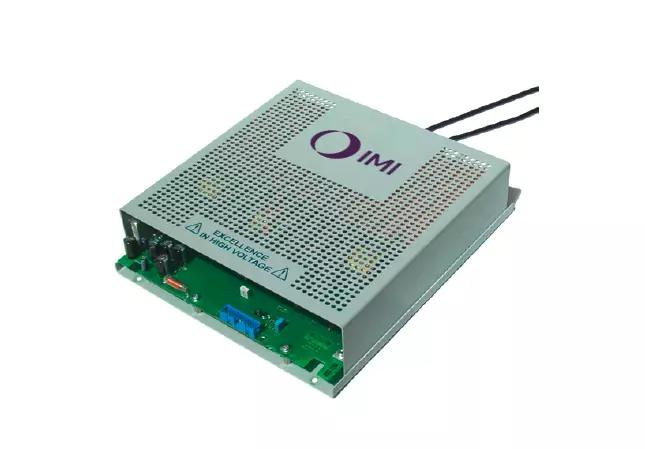

RD-Series

Reversible Bias Supply with Floating Detector Supply RD005, RD010

The RD range is a unique family of reversible polarity power supplies, directly coupled internally within the unit to a variable 3kV floating detector supply. The reversible section features fast settling times together with low ripple, tight temperature co-efficient, and very low drift. They include differential control inputs, for compensating for voltage drops on 24V supply return connections and eliminating the effects of earth loops.
The detector section with ground referenced power, control and feedback, retains excellent stability even during polarity reversal of the bias supply.

– TOF mass spectrometers, floating detectors
– ±5kV, ±10kV
– Fast reversing, slewing & settling
– Differential control inputs
– High stability - temp-co <25ppm/°C
– Flashover & short circuit protected
– Detector has ground referenced power, control & feedback

    Documentation
    • LS_DS_RD-Series_en_0924.pdf Download
