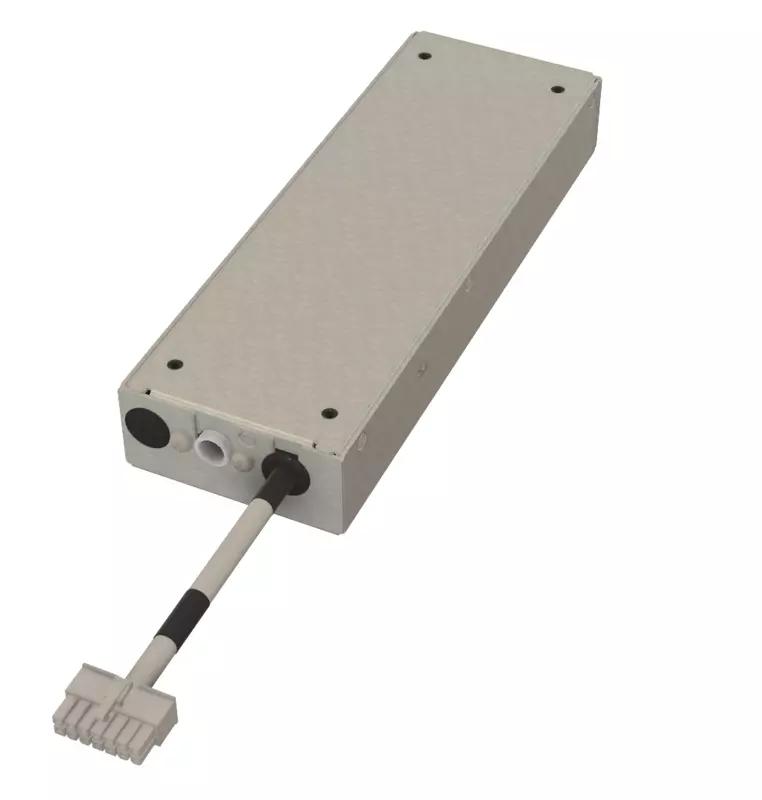

MS008 Series

The MS008RCD020 high voltage power supply is designed for demanding mass spectrometry applications, with particular suitability for electrospray ionisation (ESI) and atmospheric pressure chemical ionisation (APCI) ion sources, where fast, repeatable polarity changes and precise control are essential to analytical performance. The unit provides a ±8 kV fast polarity switching output with a maximum switching time of 20ms, ensuring rapid mode changes while maintaining excellent voltage and current stability. Independent voltage and current control, combined with an output current capability of up to 100µA makes the MS008RCD020 well suited to modern ion source architectures.

•  Mass spectrometer source and dynode supplies, electrostatic applications
•  Programmable voltage and current control
•  Fast on-line polarity switching
•  High stability, low ripple
•  Short circuit and flashover proof
•   Factory burn in
•  Low radiated magnetic field
•  UL recognised
