MP-Series
Precision High Voltage Modules
– Photomultipliers, electron multipliers, mass spectrometers, lens & bias supplies, surface science & analysis, test equipment.
– High stability, low ripple, low drift
– Short circuit & flashover proof
– PCB mounting
– 24-hour burn-in
– Positive & negative versions
– 0-10V control input

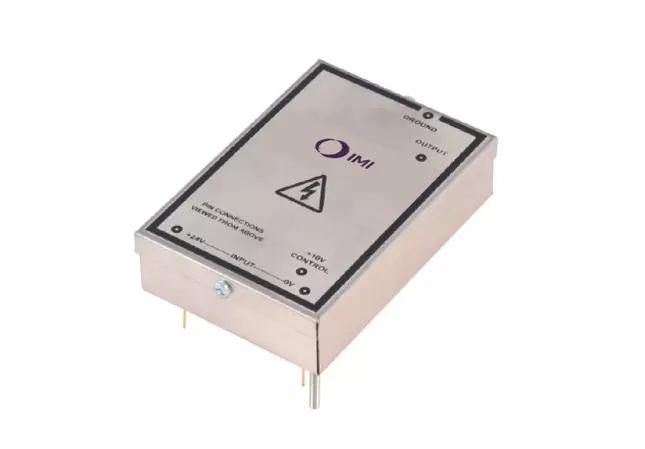

This range of power supplies are miniature versions of the HP family giving up to 1kV, 2.5kV, or 3kV, at 2W. The units, which are programmable by a 0 to +10 volt signal, are intended to be mounted on a printed circuit board and offer high stability together with low drift. They use high frequency pulse width modulated switching techniques in conjunction with a ferrite step-up transformer to control the output voltage.
