• Type:

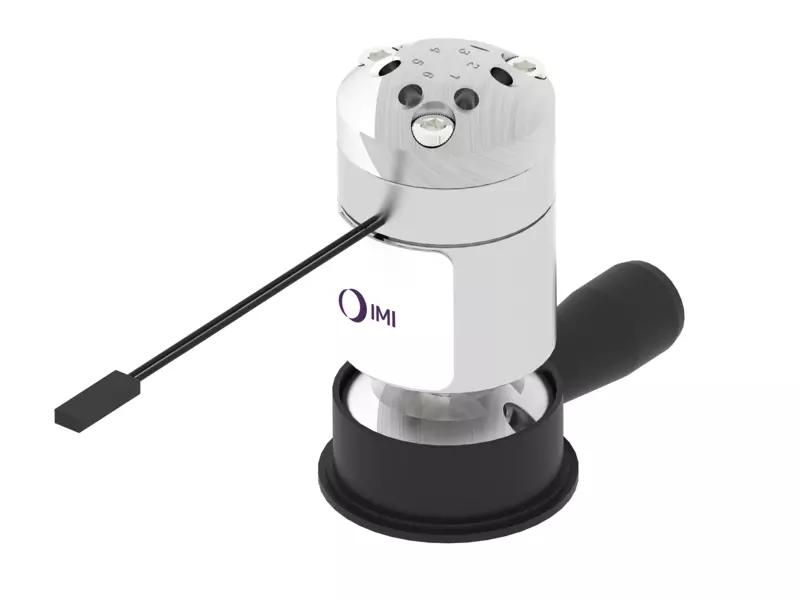

    6 port, 2 position manual injection valve
  • Pressure rating:
    483 bar (7,000 psi)
  • Port threads:
    10-32 UNF-2B
  • Fitting type:
    Cone
  • Dimensions:
    Height: 75.9 mm (2.990 in)
    Width: 34.8 mm (1.370 in)
    Depth: 34.8 mm (1.370 in)
  • Flow passage diameters:
    0.61 mm (0.024 in)
  • Port to port volume:
    3.2 μL
  • Stator port volume:
    0.8 μL
  • Seal volume:
    1.7 μL
  • Rotor channel volume:
    0.6 μL
  • Weight:
    0.29 kg (0.63 lbs)
  • Operating temperature:
    +4 … +80°C (+39 … +176°F)
  • Storage temperature:
    –30 … +80°C (–22 … +176°F)
  • Storage humidity:
    < 95% humidity, non-condensing
  • Switching time:
    < 0,25s
  • Wetted materials:
    Stator: Stainless steel
    Rotor: Polyimide
    Seal: PEEK
  • Compliance:
    RoHS, REACH
