Manual injector valve kit 6 port, 2 position
VM06021SSPKPI0700-KIT

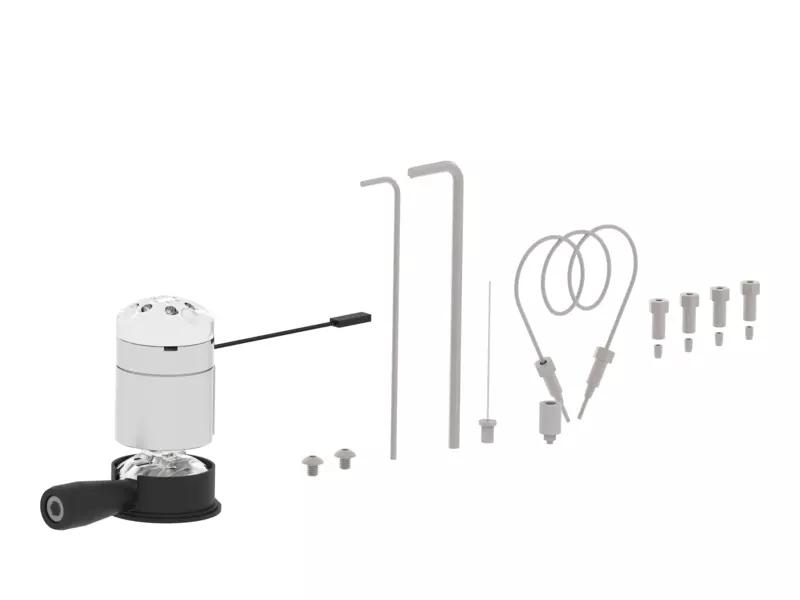

Including:
– Manual injector valve
– Mounting screws
– 20 μL stainless steel sample loop assy for 483 bar (7,000 psi)
– 22 Ga. syringe needle
– 5/64 allen wrench
– 9/64 allen wrench
– Needle port cleaner bushing
– Fitting, 10-32, 1/4 Hex, 1/16, SS
– Ferrule
Valve features:
– Rated to 483 bar (7,000 psi)
– Three alternate handle positions spaced 90 degrees apart
– Inert fluid path with low swept volume
Technical Information
- Type:
6 port, 2 position manual injection valve - Pressure rating:
483 bar (7,000 psi) - Port threads:
10-32 UNF-2B - Fitting type:
Cone - Dimensions:
Height: 75.9 mm (2.990 in)
Width: 34.8 mm (1.370 in)
Depth: 34.8 mm (1.370 in) - Flow passage diameters:
0.61 mm (0.024 in) - Port to port volume:
3.2 μL - Stator port volume:
0.8 μL - Seal volume:
1.7 μL - Rotor channel volume:
0.6 μL - Weight:
0.29 kg (0.63 lbs) - Operating temperature:
+4 … +80°C (+39 … +176°F) - Storage temperature:
–30 … +80°C (–22 … +176°F) - Storage humidity:
< 95% humidity, non-condensing - Switching time:
< 0,25s - Wetted materials:
Stator: Stainless steel
Rotor: Polyimide
Seal: PEEK - Compliance:
RoHS, REACH
