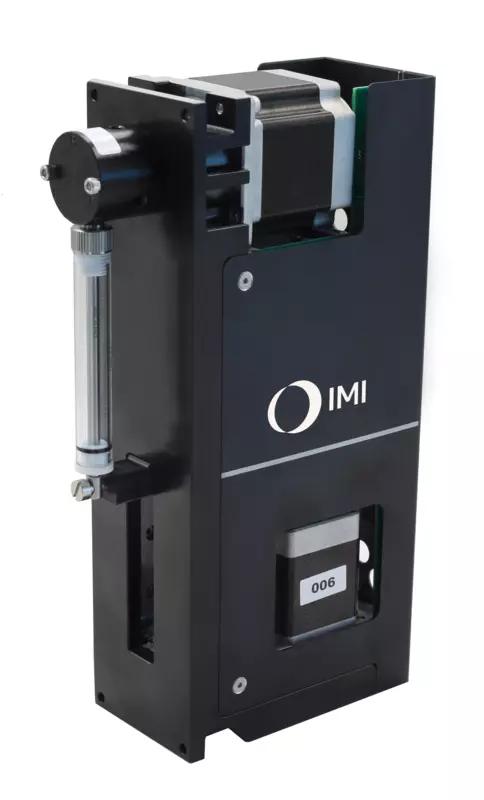

EVO6 Syringe Pump
The EVO 6 Syringe Pump is a programmable, maintenance-free, precision liquid metering device designed for applications requiring high accuracy and reliability. It features a 60 mm stroke driven by a stepper motor and precision lead screw, ensuring exceptional performance. The pump is available in mechanical resolutions of 6,000 and 48,000 steps, offering flexibility to meet various application needs. It delivers powerful lift force and valve torque, contributing to its precision, accuracy, and long-term performance. The EVO 6 is suitable for use in analytical, biotechnology, and diagnostic applications.
- Programmable, maintenance free, precision liquid metering device
- 60 mm stroke driven via stepper motor and precision lead screw – Available in three mechanical resolutions: 6K, 48K
- Powerful lift force and valve torque – Exceptional precision, accuracy and lifetime performance
- Suitable for use in analytical, biotechnology, medical device, and diagnostic applications
Product branding
Accuracy
< 1% at full stroke dispense
Electrical connection
15 pin DSUB “Power/COMM”
speed
2.4s … 40min per stroke
Precision
0.50% CV at 1/10th dispense
0.05% CV at full stoke dispense
Resolutions
6K, 48K steps
Syringe Options
10μl to 50mL
Digital communication interfaces
RS-232, RS485
Life cycle (mio)
>2 million
Application Applicability
Analytical
Biosciences
The table below assists you in finding the relevant product based on its variant. For more details, please download the datasheet above.
