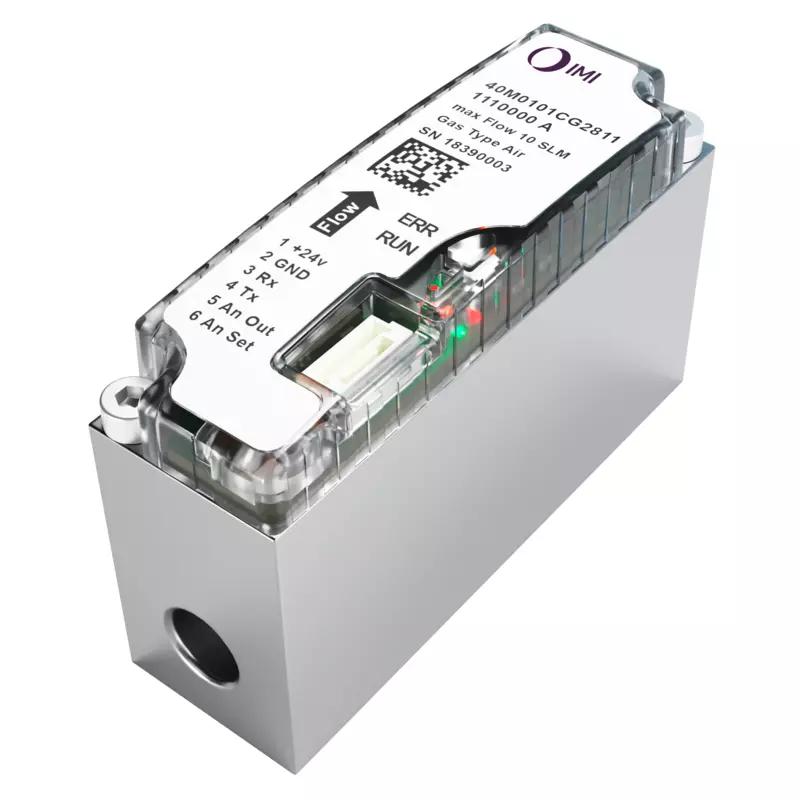

CHIPREG MFC
The CHIPREG MFC Mass Flow Controller, with its ultra-compact size of less than 22mm and impressive dynamic range of up to 1000:1, offers unparalleled precision and versatility for bioreactors, analytical, and medical device applications. Its high performance-to-cost ratio ensures optimal value for your processes needing gas flows up to 20 l/min.
- Ultra compact size < 22mm
- High turndown ratio
- Best performance-to-cost ratio
- Fast time-to-market through complete sub-assemblies
- Analytical clean version available
- No drift, no recalibration required
- For bioreactors, analytical, medical devices and process control applications
Product branding
Flow range
0-0,2 ls /min
0-0,5 ls /min
0-1 ls /min
0-2 ls /min
0-5 ls /min
0-10 ls /min
0-20 ls /min
On request:
Lower flows (down to 0-1 ml/min)
Higher flows (up to 0-150 l/min)
Accuracy
± 0,2% of full scale (0-10% of max flow)
± 2,0% of reading (10%-100% of max flow)
Electrical connection
JST Connector BM06B-GHS-TBT
Dynamic_range
Standard: 500:1
Premium: 1000:1
repeatability
< 1% of reading
Pneumatic_Connections
In line version (G1/8’’)
Manifold mount
Digital_communication_interfaces
RS232
RS485
Other interfaces on request
Operating Gas
Air
Ar
CO2
H2
He
Multigas
N2
O2
analog_input_output
0 to 5 V d.c
Operating_Voltage__V_
24 V d.c. ± 10%
Application Applicability
Analytical
Biosciences
Medical Devices
The table below assists you in finding the relevant product based on its variant. For more details, please download the datasheet above.
| Art. No. |
|---|
