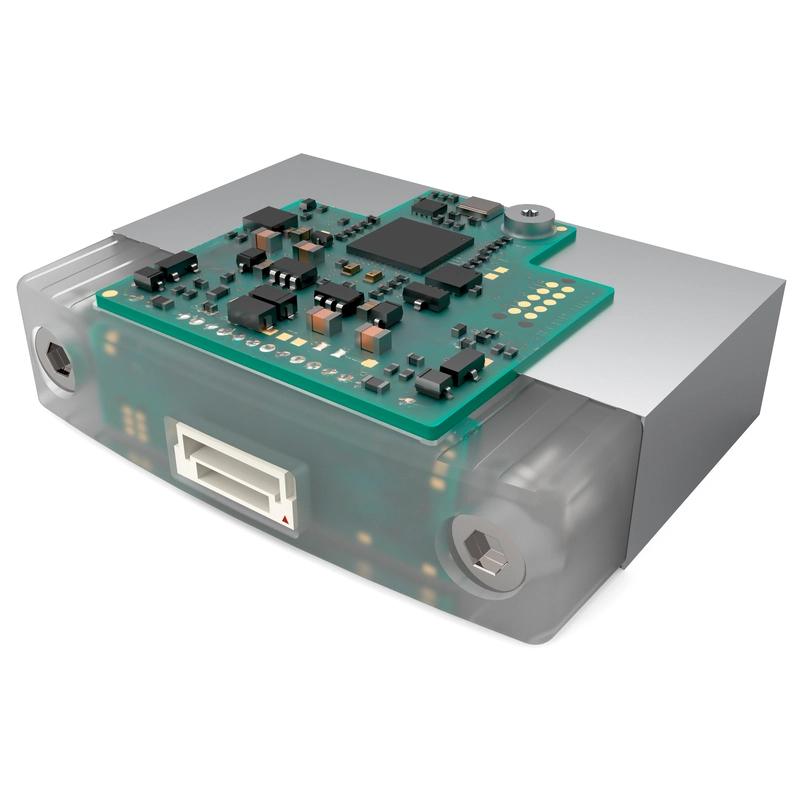

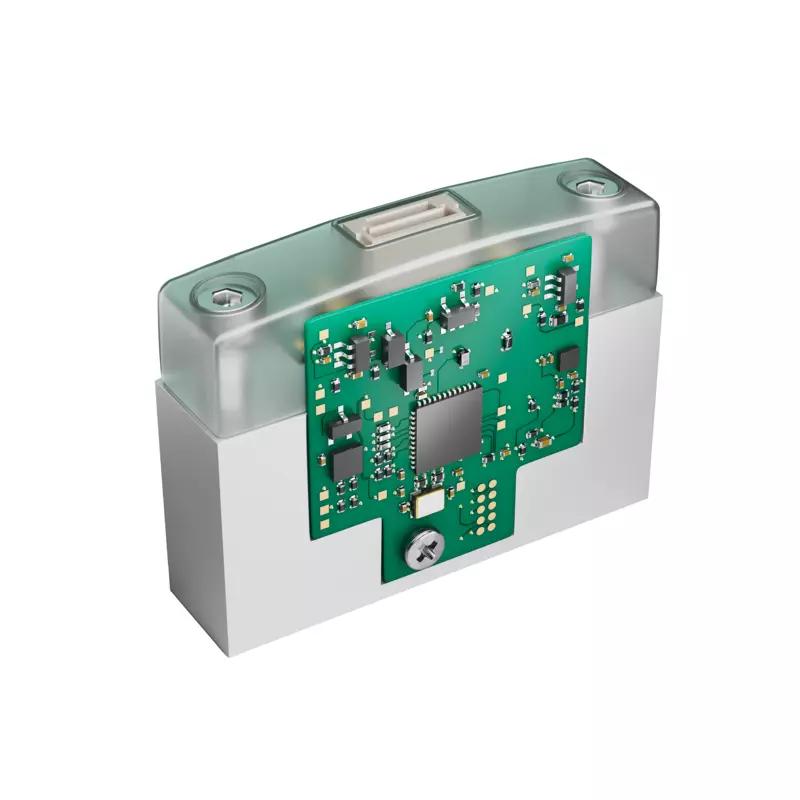

CHIPREG EPC
The CHIPREG EPC is the smallest Electronic Pressure Controller on the market, providing precise and stable pressure control in a cost-effective way. Ideal for microfluidic, analytical, medical and industrial applications.
- Precision closed loop pressure controller
- Features two proportional valves (inlet and exhaust)
- Ultra compact size, <14mm width
- Best performance-to-cost ratio
- For Life Science, Medical and Process Control applications
- Ideal for pressure-driven flow in microfluidic applications
Technical SpecificationsLS_DS_CHIPREG-EPC_en_0425.pdf
Technical Specificationschipreg_epc_user_manual_V2.0.pdf
Contact usProduct branding
Accuracy
± 0,3% of full scale
Controlled_Pressure_Range
Range –1 to 1 bar
Range 0 to 4 bar
Range 0 to 7 bar
Custom pressure range on request
Digital_communication_interfaces
RS485
Operating Gas
Air
Ar
CO2
H2
He
N2
O2
analog_input_output
0 to 5 V d.c.
Operating_Voltage__V_
24 V d.c. ±10%
Application Applicability
Analytical
Biosciences
Medical Devices
The table below assists you in finding the relevant product based on its variant. For more details, please download the datasheet above.
| Art. No. |
|---|
