• Medium:
    Neutral or aggressive gases and liquids
  • Operation:
    2/2 NC proportional
  • Orifice size:
    0,2; 0,6; 1,0 mm
  • Max, operating pressure:
    0,1 bar (orifice 1,0 mm)
    5 bar (orifice 0,6 mm)
    8 bar (orifice 0,2 mm)

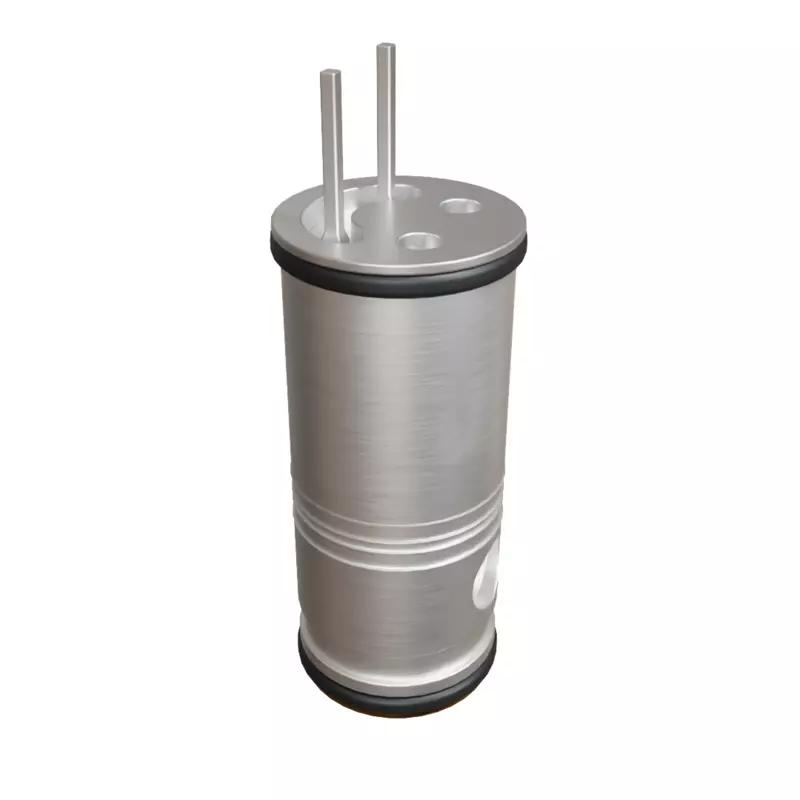

  • Mounting:
    Cartridge
  • Size:
    Ø 8 mm x 19 mm
  • Flow characteristics:
    kv 0,02 (orifice 0,2 mm);
    kv 0,12 (orifice 0,6 mm);
    kv 0,16 (orifice 1,0 mm);
    See flow curves
  • Temperatures:
    Temperature: +5°C-50°C
    Ambient temperature:
    +0 … +65°C (+32 … +149°F)
    Media temperature:
    +0 … +40°C (+32 … +104°F)
  • Material:
    Body material in contact with
    media: Stainless steel, brass
    Seal material: FPM
