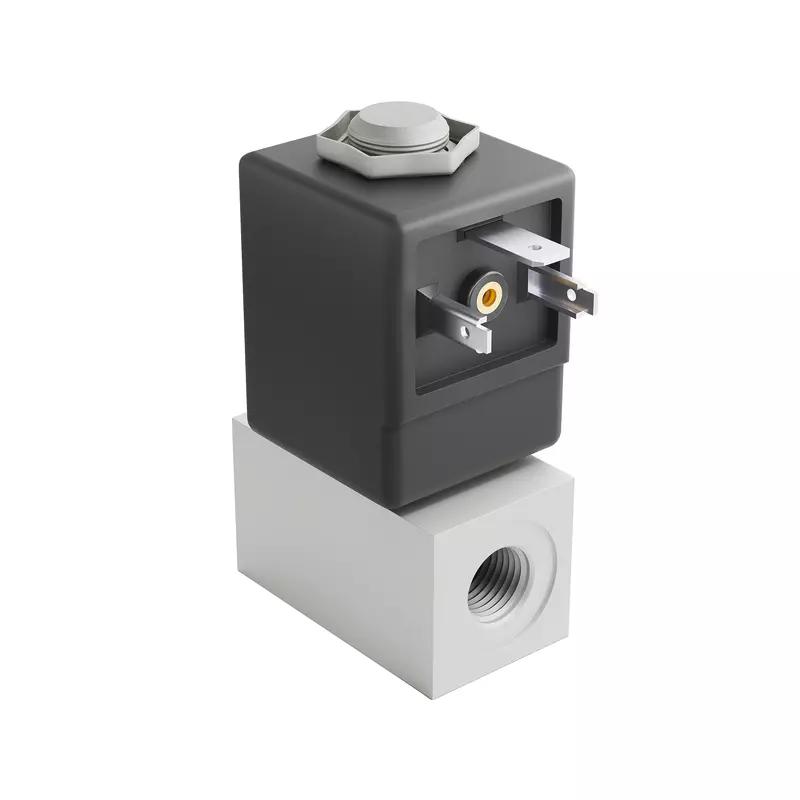

32mm BACOSOL
A high-flow solenoid valve (kv up to 14) handling up to 100 bar. Available in 2/2 and 3/2 configurations for demanding air, gas, and liquid applications. Ultra-low leak rate versions are available for vacuum applications.
- 2/2, 3/2; Manifold mounting
- Compact design
- High flow rate
- High cycle rate of up to 1200 cycles per minute
- Up to kv 14 (orifice 8 mm)
Technical SpecificationsLS_DS_BACOSOL_en_0524.pdf
Contact usProduct branding
Power consumption
10 W
Footprint
32 mm
Operation
Direct acting 2-way and 3-way valves,
normally closed and normally opened, latching
Mounting option
Inline
Response time txt
10 to 15 ms
Response time measured according to ISO 12238
Medium
Air, neutral gases and liquids
Operating pressure
0 to 100 bar (0 to 1450 psi)
Application Applicability
Analytical
Biosciences
The table below assists you in finding the relevant product based on its variant. For more details, please download the datasheet above.
| Art. No. |
|---|
