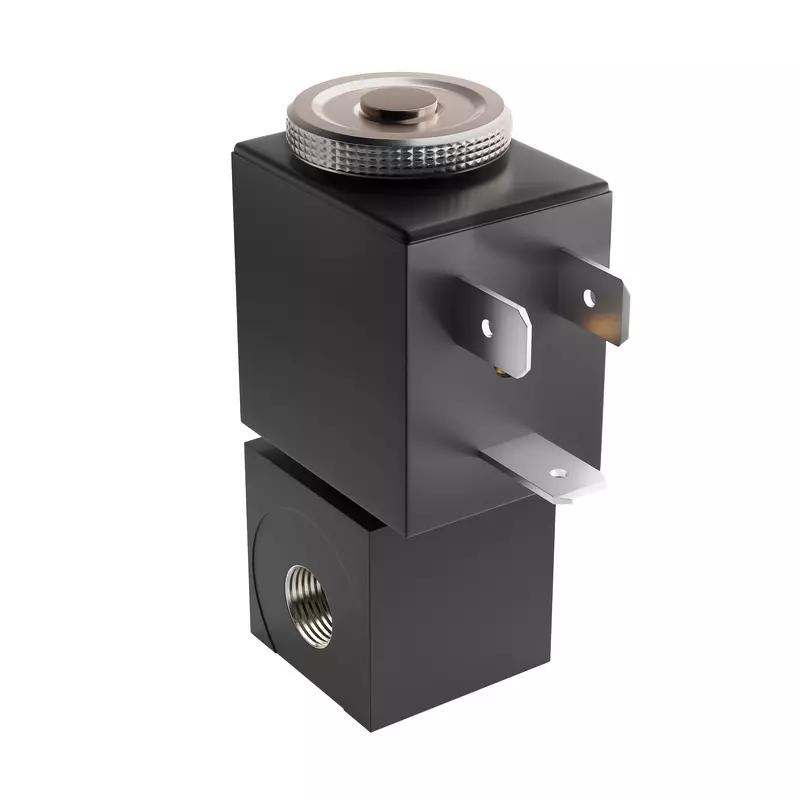

22mm MINISOL

A high-cycle solenoid valve (up to 2,000 cycles/min) for air, gases, and liquids. Supports up to 40 bar and ensures durability with a 25M+ cycle lifespan. Ultra-low leak rate versions are available for vacuum applications.

2/2, 3/2 – Compact design
Long life - in excess of 25 Mio. cycles
High cycle rate of up to 2000 cycles per minute
Up to 2,4 mm orifice (kv 2,00)

Technical SpecificationsLS_DS_MINISOL_en_0524.pdf

Product branding

Power consumption

3.8 W

Footprint

22 mm

Operation

Direct acting 2-way and 3-way valves,

normally closed and normally opened, bi-directional

Mounting option

Inline

Response time txt

8 to 15 ms

Response time measured according to ISO 12238

Medium

Air, neutral gases and liquids

Life cycle (mio)

25 million cycles

Operating pressure

0 to 40 bar ( 0 to580 psi)

Application Applicability

Analytical

Biosciences

The table below assists you in finding the relevant product based on its variant. For more details, please download the datasheet above.

Art. No.
