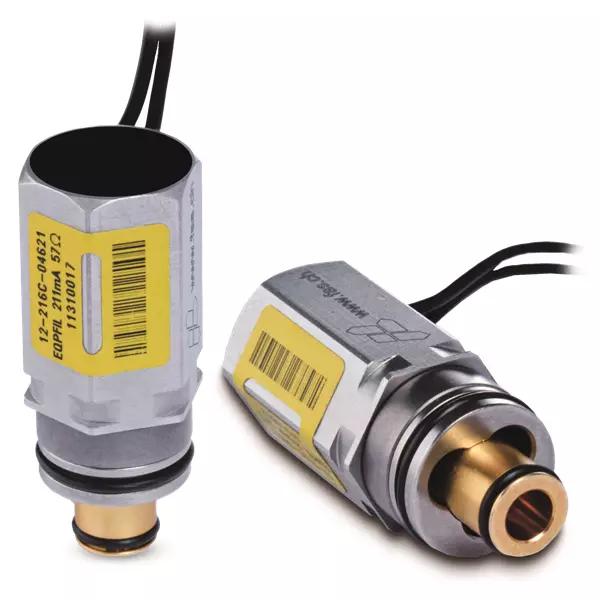

16mm FLATPROP EQP

16mm FLATPROP EQP

A high-flow 2/2 proportional valve offering >200 l/min at 2.4 bar. It provide long-lasting repeatability over hundreds of millions of cycles. Market-leading product, used by the large majority of respiratory devices.

  • 2/2 NC pressure compensated proportional valve
  • High flow, high precision
  • Increased flow
  • 200 l/min of air at 2,4 bar
  • Low power consumption of 2,5 W
  • Frictionless design enables high resolution
Technical SpecificationsLS_DS_FLATPROP-EQP_en_0424.pdf
Contact us

Product branding

Power consumption

2.5 W

Leakage

< 10-2 mbar l/s (≈0,6 ml/min) 0 … pmax

Footprint

16 mm

Operation

2-way valve, Normally closed

Filtration

A filtration of 20 micrometer is required before the inlet

Orifice size

4.6 MILLIMETER

Mounting option

Cartridge

Medium

Air, oxygen or neutral gases

Flowrate

> 200 l/min at 2,4 bar

Life cycle (mio)

≥ 100 Mio. cycles (with triangular signal)

Operating pressure

0 to 7 bar

Application Applicability

Analytical

Biosciences

The table below assists you in finding the relevant product based on its variant. For more details, please download the datasheet above.
