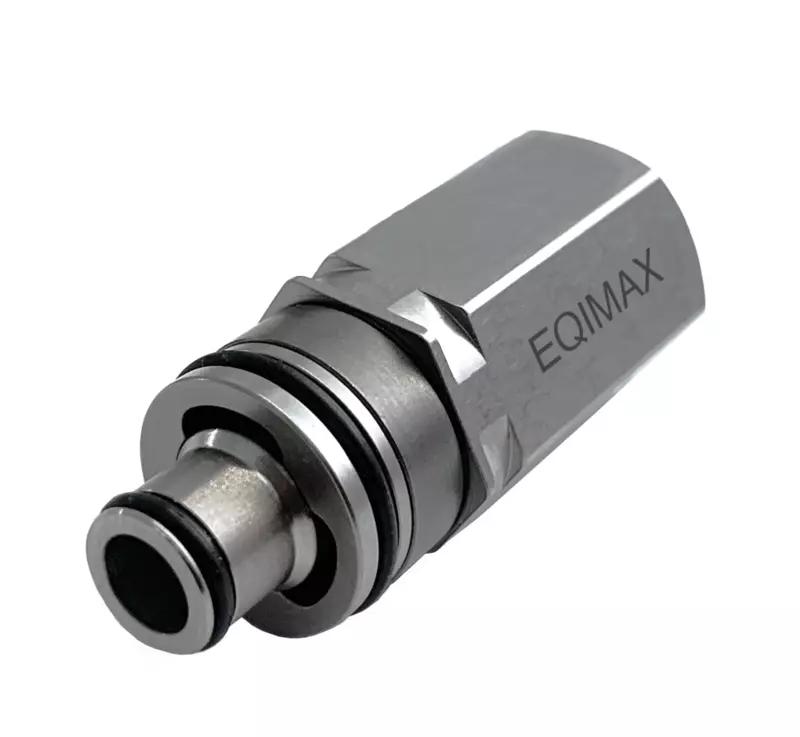

16mm FLATPROP EQI MAX
High flow proportional valve, derived from market-leading FLATPROP EQI, it enables more versatile ventilation thanks to its excellent flow capabilities (>220l/min at 2 bar).
- 2/2 NC pressure compensated proportional valve
- Ultra high flow, high precision
- > 450 l/min flow with boosting PWM
- Low power consumption of 2,5 W
- Frictionless design enables high resolution and long lifetime
- Optimized performance for medical ventilators : > 220 l/min @ 2 bar and > 260 l/min @ 3 bar
Product branding
Power consumption
2.5 W
Leakage
Internal leakage < 0,6 ml/min @ 7.0 barg
External leakage < 0,6 ml/min at P= 9,5 barg
Footprint
16 mm
Operation
2/2 NC proportional,
Pressure compensated
Orifice size
51 mm
Mounting option
Cartridge
Medium
Oxygen, neutral gases
Flowrate
> 220 l/min @ 2.0 barg ; > 260 l/min @ 3.0 barg ; > 300 l/min @ 4.0 barg
Life cycle (mio)
≥ 100 Mio. cycles (with triangular signal)
Operating pressure
0 to 7 bar
Application Applicability
Analytical
Biosciences
The table below assists you in finding the relevant product based on its variant. For more details, please download the datasheet above.
