16mm FLATPROP EQI

16mm FLATPROP EQI

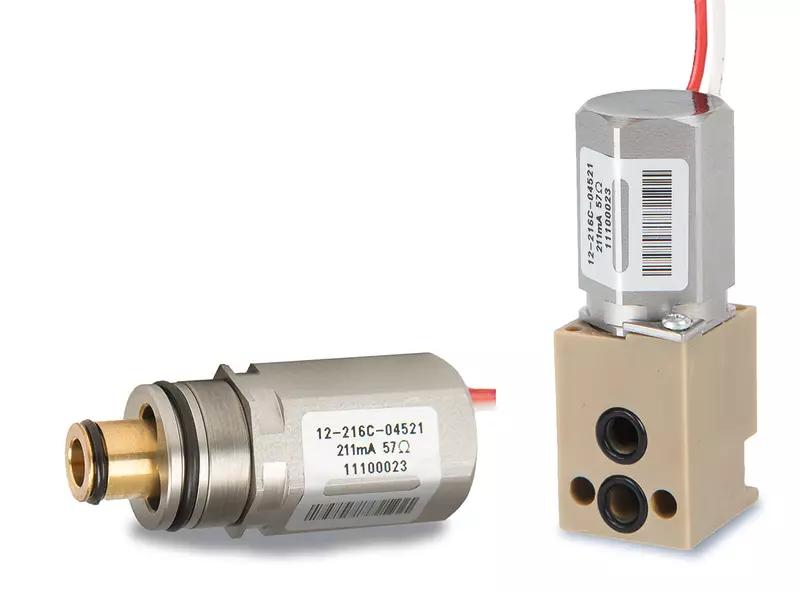

A precision 2/2 proportional valve with pressure compensation. Provides consistent high flow (>120 l/min at 2 bar) and long-lasting repeatability over hundreds of millions of cycles. Market-leading product, used by the large majority of respiratory devices.

  • 2/2 NC pressure compensated proportional valve
  • High precision
  • Increased flow
  • 120 l/min of air at 2 bar
  • Flat plunger and spring for frictionless operation
  • Highly repeatable with over 100 million cycles
Technical SpecificationsLS_DS_FLATPROP-EQI_en_0424.pdf
Contact us

Product branding

Power consumption

2.5 W

Leakage

< 10-2 mbar l/s (≈0,6 ml/min) 0 … pmax

Footprint

16 mm

Operation

2-way valve Normally closed

Filtration

A filtration of 20 micrometer is required before the inlet

Orifice size

4.5 mm

Mounting option

Cartridge, Manifold

Medium

Air, oxygen or neutral gases

Flowrate

> 120 l/min at 2 bar

Life cycle (mio)

≥ 100 Mio. cycles (with triangular signal)

Application Applicability

Analytical

Biosciences

The table below assists you in finding the relevant product based on its variant. For more details, please download the datasheet above.
