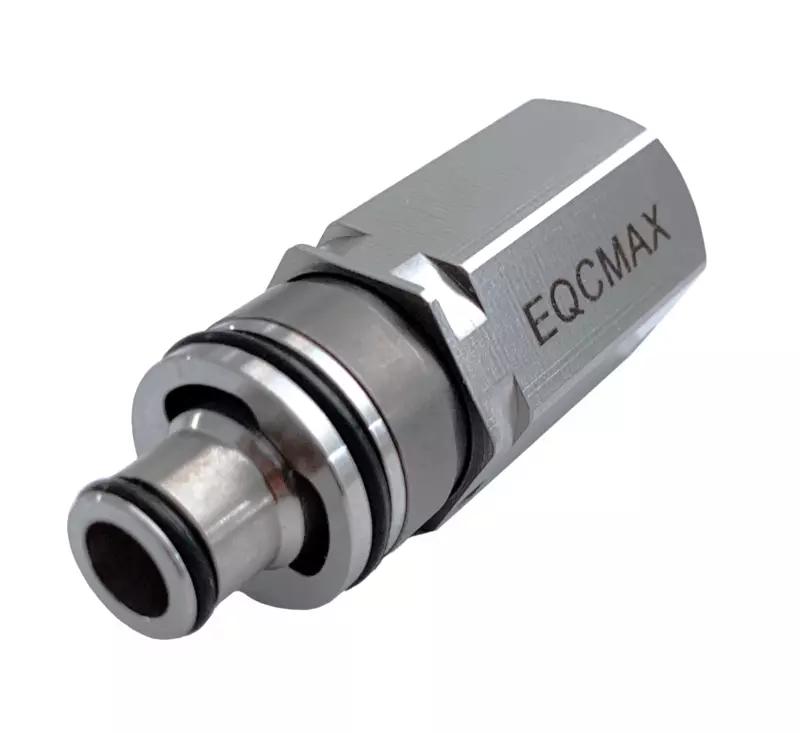

16mm FLATPROP EQC MAX
High flow proportional valve, derived from market-leading FLATPROP. Its excellent flow capabilities (>200l/min at 2 bar) and excellent backpressure capabilities (up to 90%) make it ideal for respiratory and process control applications.
- 2/2 NC pressure compensated proportional valve
- Suitable for back pressure up to 70% of inlet pressure
- Ultra high flow, high precision
- > 450 l/min flow with boosting PWM
- Low power consumption of 2,5 W
- Frictionless design enables high resolution and long lifetime
Product branding
Power consumption
2.5 W
Leakage
Internal leakage < 0,6 ml/min @ 7.0 barg
External leakage < 0,6 ml/min at P= 9,5 barg
Footprint
16 mm
Operation
2/2 NC proportional, pressure compensated
Orifice size
5.1 mm
Mounting option
Cartridge
Medium
Oxygen, neutral gases
Flowrate
> 200 Slpm @ 2.0 barg ; > 250 Slpm @ 3.0 barg
Life cycle (mio)
≥ 100 Mio. cycles (with triangular signal), not On/Of
Operating pressure
0 to 7 bar
Application Applicability
Analytical
Biosciences
The table below assists you in finding the relevant product based on its variant. For more details, please download the datasheet above.
