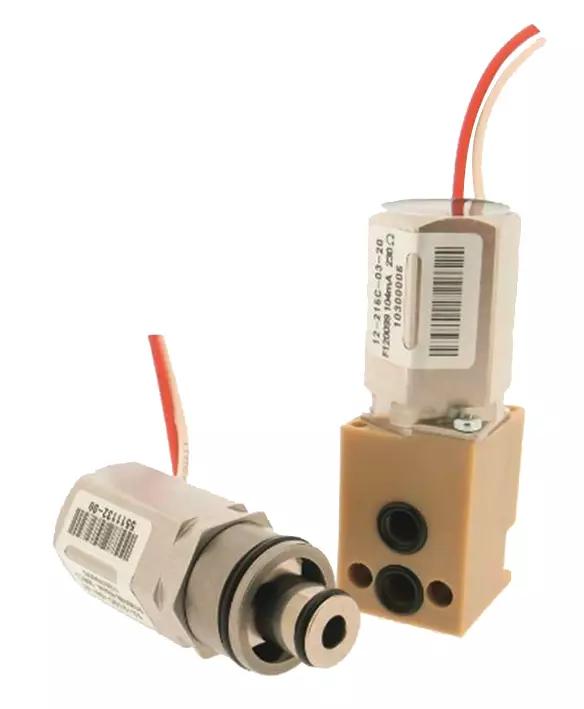

16mm FLATPROP
The 16 mm FLATPROP is a 2/2 proportional valve featuring a flat plunger and spring for frictionless operation. It provides precise control of flows ranging from a few milliliters per minute to 80 liters per minute, with high repeatability over more than 100 million cycles.
- 2/2 NC proportional valve
- High precision miniature proportional valve
- Flat plunger and spring for frictionless operation
- Highly repeatable with over 100 million cycles
- Accurate control of flows ranging from a few ml/min to 80 l/min
Product branding
Power consumption
0.5 W
Leakage
< 10-2 mbar l/s (≈0.6 ml/min) at pmax
Footprint
16 mm
Operation
Direct acting 2-way valve Normally closed
Filtration
A filtration of 10 micrometer is required before the inlet for valves with an orifice size comprised between 0,8 to 2,0 mm
Mounting option
Cartridge
Medium
Air, oxygen or neutral gases
Pressure Range
0 to 12 bar
Life cycle (mio)
≥ 100 Mio. cycles
Operating pressure
0 to 12 bar
Application Applicability
Analytical
Biosciences
The table below assists you in finding the relevant product based on its variant. For more details, please download the datasheet above.
