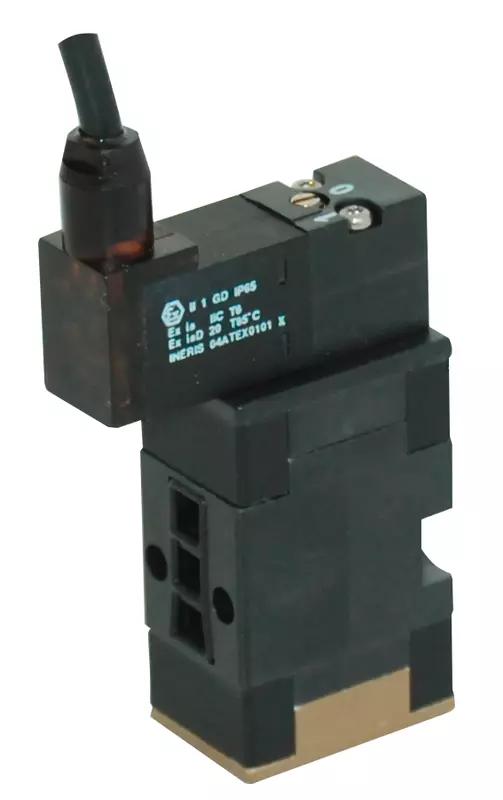

15mm MICROSOL Interface IS
The 15 mm MICROSOL Interface is a variant of the MICROSOL series. Its compact and pilot-operated design ensures high flows in a compact and low power valve, ideal for Food & Beverage applications. Engineered for use in explosive atmospheres, it holds ATEX and IECEx certifications, ensuring safety and reliability in such environments.
- 3/2 NC Manifold mounting
- Compact design
- High flow
- Pilot operated, servo assisted
- Long life - in excess of 100 millions cycle rate
- Low power consumption
- Certification: ATEX, IECEx
Product branding
Footprint
15 mm
Operation
Direct acting 3-way valves,
normally closed
Orifice size
3 mm
Mounting option
Manifold
Response time txt
25 ms
Response time measured according to ISO 12238
Medium
Air,oxygen and neutral gases (10% to 95 % humidity, non condensing), 40 μm filtered
Flowrate
160 l/min at 7 bar at +20°C ; 220 l/min at 8 bar at +20°C
Operating pressure
See table in Technical Specifications
Application Applicability
Analytical
Biosciences
The table below assists you in finding the relevant product based on its variant. For more details, please download the datasheet above.
