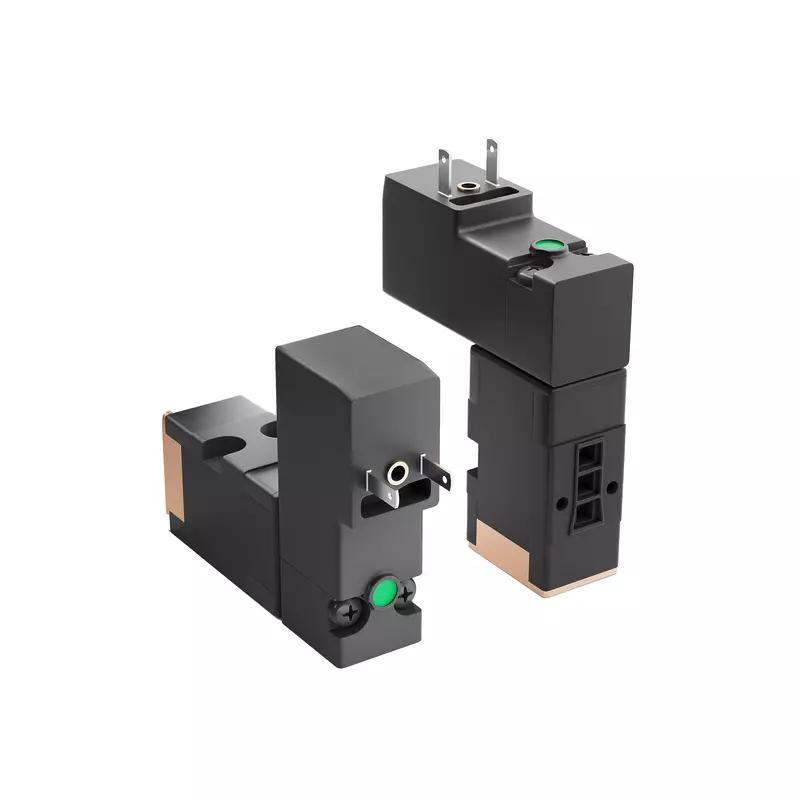

15mm MICROSOL Interface
The 15 mm MICROSOL Interface is a variant of the MICROSOL series. Its compact and pilot-operated design ensures high flows in a compact and low power valve, ideal for Food & Beverage and Medical applications.
- 3/2 NC, 3/2 NO Manifold mounting
- Compact design
- High flow
- Pilot operated, servo assisted
- Long life – in excess of 100 millions cycle rate
- Low power consumption
Product branding
Power consumption
1 W
Footprint
15 mm
Operation
Pilot operated, servo assisted
3-way valves, normally closed or normally open with manual override
Orifice size
3 mm
Mounting option
Manifold
Response time txt
10 … 15 ms
Response time measured according to ISO 12238
Medium
Air, oxygen and neutral gases
Flowrate
200 l/min at inlet pressure 6 bar, Δp = 1 bar and +20°C Air.
Life cycle (mio)
100 million cycles (except Hit & Hold valves)
Operating pressure
3/2 NC: 1,5 to 10 bar ; 3/2 NO: 1,5 to 8 bar
Application Applicability
Analytical
Biosciences
The table below assists you in finding the relevant product based on its variant. For more details, please download the datasheet above.
