• Medium:
    Air, oxygen, neutral gases (10 % to 95 % humidity, non condensing), 40 μm filtered
  • Operation:

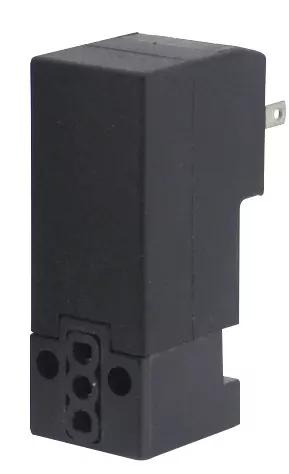

    Direct acting 3-way valves, normally closed
  • Flow:
    12 l/min at 7 bar (101 psi) at +20 °C (+68°F)
  • kv factor:
    0,12 (Cv: 0.008)
  • Mounting:
    Manifold
  • Orifice:
    0,5 mm
  • Response time:
    25 ms
    Response time measured
    according to ISO 12238
  • Life expectancy:
    20 … 100 million cycles
    (except Hit & Hold valves)
  • Weight:
    30 g (0.07 lbs)
  • Ambient/media temperature:
    -10 ... +50 °C (+14 ... +122°F)
    Air supply must be dry enough to avoid ice formation at temperatures below +2 °C (+35°F).
  • Materials:
    Body: PPS
    Seat seals: NBR, FPM
    Internal parts: Stainless steel,
    PA 6/6
