10mm PICOSOL

10mm PICOSOL

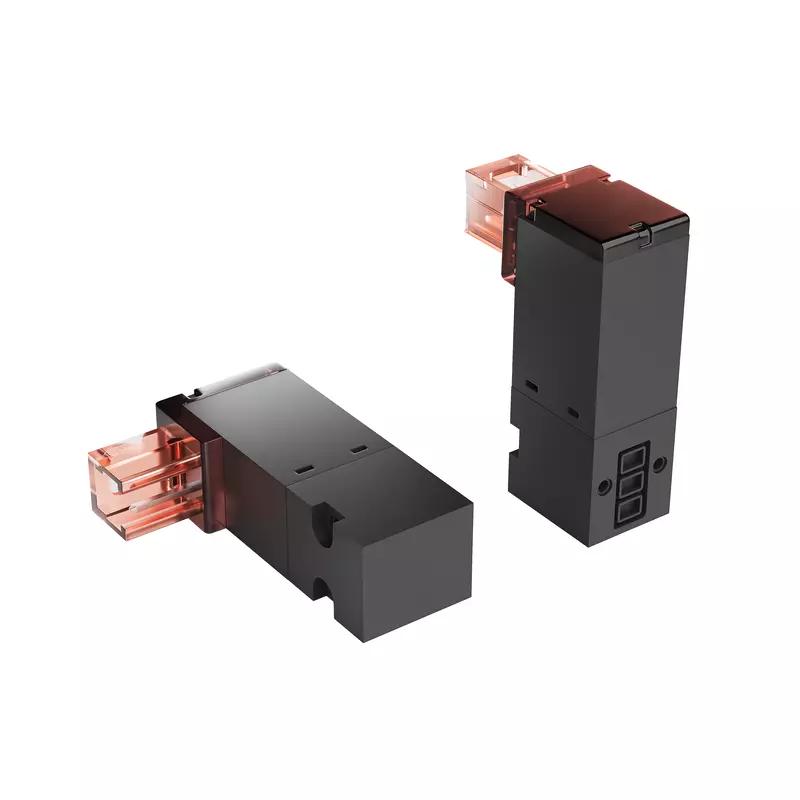

Miniature 2/2 and 3/2 solenoid valve, industry-reference thanks to its simple and compact design, produced in a fully automated production line.

  • 2/2, 3/2; Manifold mounting
  • Compact Design
  • Long life – 100 million cycles
  • Low power consumption
Technical SpecificationsLS_DS_PICOSOL_en_0424.pdf
Contact us

Product branding

Footprint

10 mm

Operation

Direct acting 2-way and 3-way valves,

Normally closed and normally opened

Mounting option

Manifold

Response time txt

10 to 15 ms

Response time measured according to ISO 12238

Medium

Air, oxygen, neutral gases (10% … 95% humidity, non condensing), 40 μm filtered

Flowrate

5 to 32 l/min at 2 bar (29 psi) at +20°C (+68°F)

Life cycle (mio)

≥100 Mio. cycles for 1 W valves

Operating pressure

0 to 10 bar (Details in specifications)

Application Applicability

Analytical

Biosciences

The table below assists you in finding the relevant product based on its variant. For more details, please download the datasheet above.
