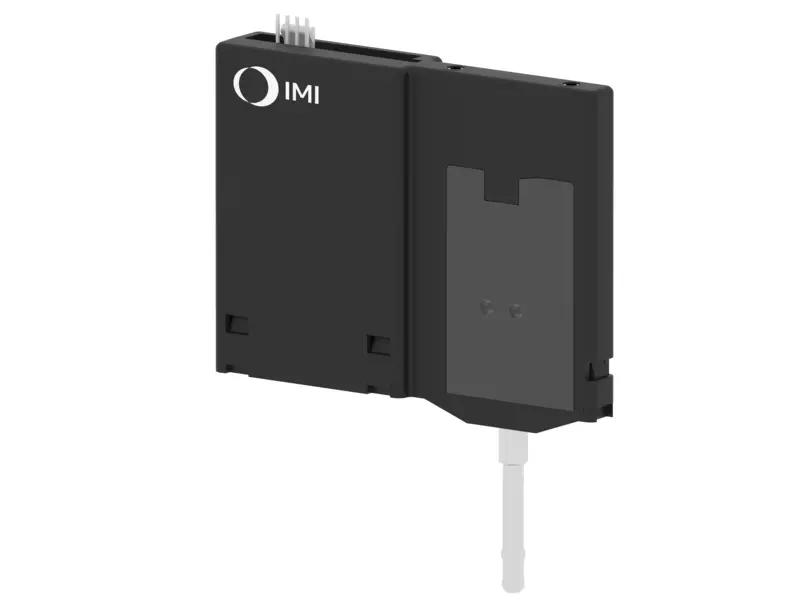

OEM Pipetting Module
– Self-contained pipetting module
– No external pressure source required
– Fully solid-state FAS CHIPSOL solenoid valves and piezoelectric air pump
– Broad dynamic dispense range; μL to mL, handles any tip size
– Closed loop pressure control (tunable PID) enables liquid level, tip, clog and bubble detection
– Multiple pipettors can be mounted with tips on 9 mm centers
– Silent, compact and lightweight
Technical Information
- Dimensions:
97.2 mm x 16.9 mm x 72.1 mm (3.83 in x 0.67 in x 2.84 in) - Width at tip mandrel:
8.95 mm (0.35 in) - Weight:
100 g (3.5 oz) - Pressure:
–200 mbar [–2.9 psig]
to 300 mbar [4.4 psig]
Resolution: 0.2 mbar - Time:
Minimum setpoint time: 5 ms
Resolution: 0.2 ms - Precision:
200 to 1000 μl: < 1% CV
50 to 199 μl: < 2,5% CV
10 to 49 μl: < 3% CV
5 to 9 μl: < 5% CV
1 to 4 μl: < 10% CV - Power:
24 V d.c. (with peak current 0.5A) - Interface:
Type: RS-485
Baud Rate: 9600, 38400, or 115200
8 addresses configurable via DIP switches, 16 addresses configurable via software - Communications:
Protocol: ASCII based on Cavro®/data terminal
Auxiliary I/O: One digital IN/OUT, one I2C - Electrical connection:
4-pin MTA-100 - Optional:

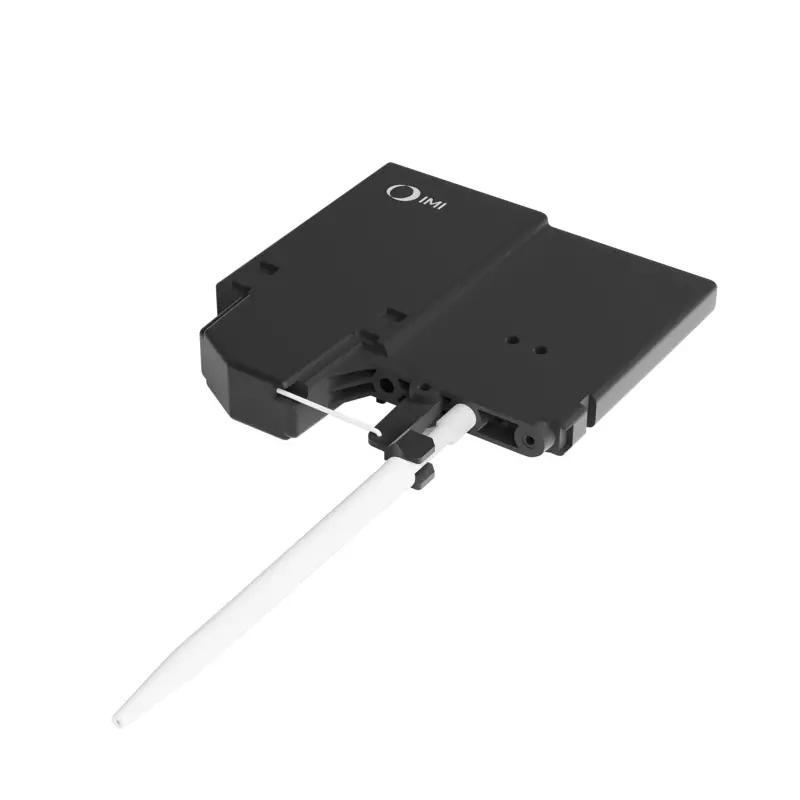

Tip eject
