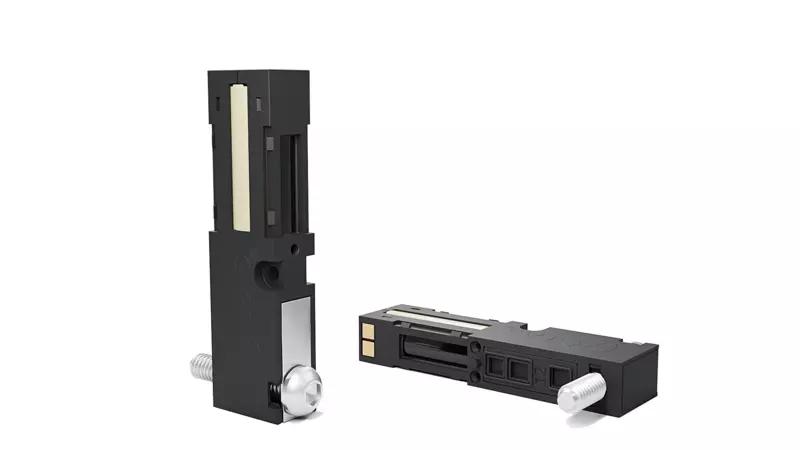

6.5mm FLEXISOL

An ultra-compact solenoid valve designed for applications requiring high flow rates and rapid response times in a small footprint. Its single-screw design, captive seal and direct connection to PCB enable ultra- fast and robust assembly.

Flow of a 8 mm valve in a 6,5 mm footprint, without usual manufacturing constraints
One-screw mount
Solder free / direct connection on PCB
Captive seals

Technical SpecificationsLS_DS_FLEXISOL_en_0424.pdf

Product branding

Power consumption

0.8 W

Leakage

Internal leakage: 10-2 mbar l/s

External leakage: 10-2 mbar l/s

Footprint

6.5 mm

Operation

Direct acting 2-way and 3-way valves,

normally closed and normally opened

Orifice size

0.9 mm

Mounting option

Manifold

Response time txt

Pneumatic response time (ON): 5 ms

Pneumatic response time (OFF): 10 ms

Response time measured according to ISO 12238

Medium

Air, oxygen, neutral gases, 40 µm filtered

Flowrate

See technical data - standard models

Pressure Range

0 to 2.5 bar

Life cycle (mio)

50'000'000 cycles

Operating pressure

0 to 2.5 bar

Application Applicability

Analytical

Biosciences

The table below assists you in finding the relevant product based on its variant. For more details, please download the datasheet above.
