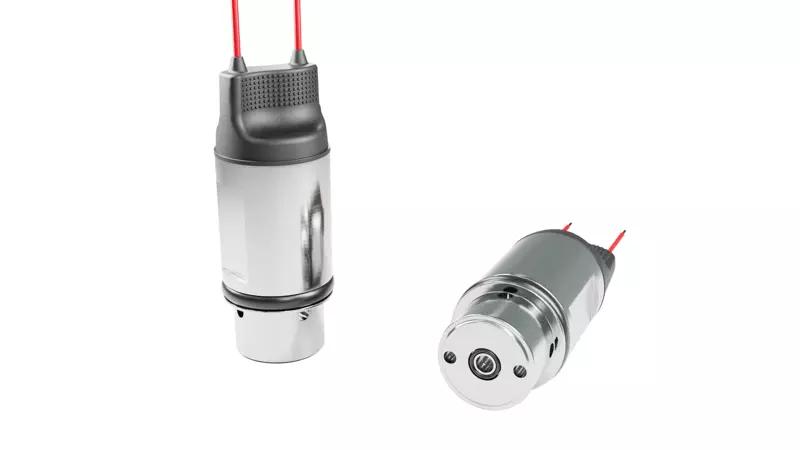

16mm FASPROP
The 16 mm FASPROP is a high-precision, 2/2 proportional valve engineered for accurate low flow control, down to ml/min. It offers a frictionless design for enhanced repeatability. Used by the largest Gas Chromatography and Mass Spectrometry manufacturers to enable wider gas control range and increased repeatibility & controlability. Its FFKM option enables excellent resistance to aggressive gas.
- 2/2 NC - Cartridge mounting
- High controllability in dosing gases in ml range
- High stability in closed loop control systems
- Cleaned for analytical applications
- Repeatable proportional characteristic over the lifetime
Technical SpecificationsLS_DS_FASPROP_en_0424.pdf
Contact usProduct branding
Power consumption
0.5 W
Leakage
10-3 mbar x l/s
Footprint
16 mm
Operation
Direct acting 2-way valve Normally closed
Filtration
Orifice sizes from 0,05 to 0,3 mm: 5 µm filter already integrated
Orifice sizes 0,5 mm: 5 µm filters can be integrated on request or to be placed before the valve
Seal Material
FPM
Mounting option
Cartridge
Valve Function 1
Direct
Valve Function 3
Pressure-compensated
In Contact with media
SS
Medium
Compressed air, neutral gases
Pressure Range
0 to 10 bar
Life cycle (mio)
≥ 100 Mio. cycles
Application Applicability
Analytical
Biosciences
The table below assists you in finding the relevant product based on its variant. For more details, please download the datasheet above.
| Art. No. |
|---|
